SAE Low Profile Socket
Product Details

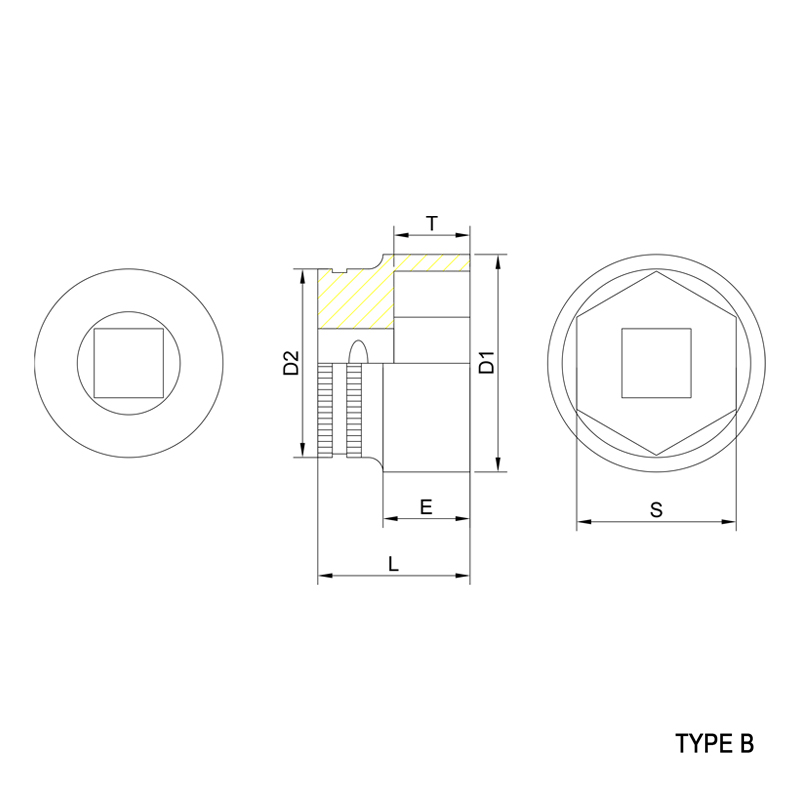

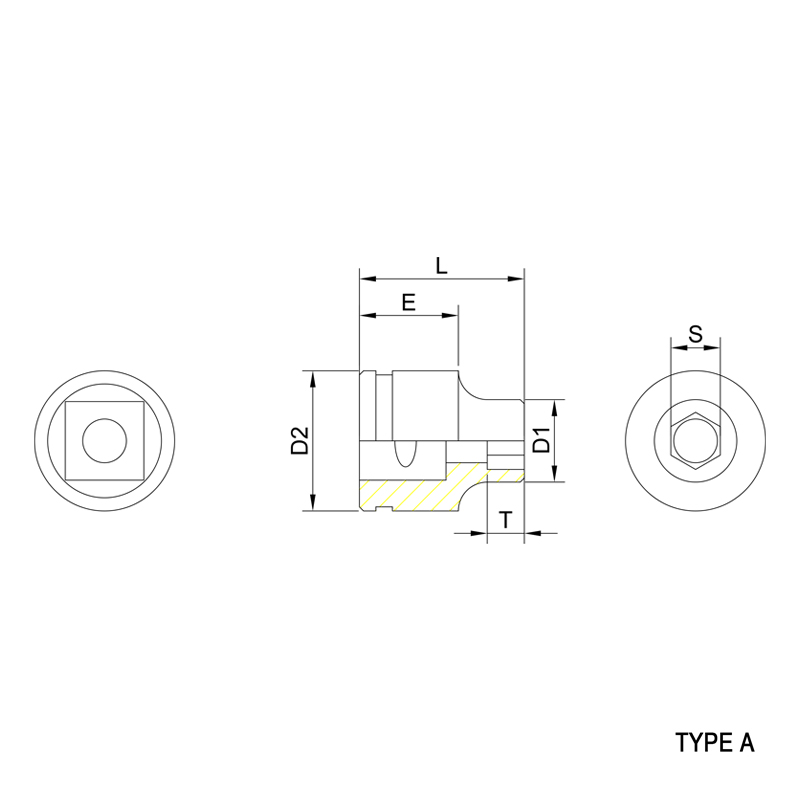

| Item No. | SIZE | L(mm) | D1(mm) | D2(mm) | Emin | TYPE |  PACKING |
N.W.(kg) | G.W.(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 1/4" | 21 | 10 | 17 | 12 | A | 400/CTN | 9 | 10 | |
| 9/32" | 21 | 11 | 17 | 12 | A | 400/CTN | 9 | 10 | |
| 5/16" | 21 | 12 | 17 | 12 | A | 400/CTN | 9 | 10 | |
| 11/32" | 21 | 13.5 | 17 | 12 | A | 400/CTN | 10 | 11 | |
| 3/8" | 21 | 14.5 | 17 | 12 | A | 400/CTN | 10 | 11 | |
| 7/16" | 21 | 16 | 17 | 12 | A | 400/CTN | 10 | 11 | |
| 15/32" | 21 | 17 | 16 | 12 | B | 400/CTN | 10 | 11 | |
| 1/2" | 21 | 18 | 16.5 | 12 | B | 400/CTN | 11 | 12 | |
| 9/16" | 21 | 20 | 17 | 12 | B | 400/CTN | 14 | 15 | |
| 19/32" | 21 | 22 | 19 | 12 | B | 320/CTN | 12 | 13 | |
| 5/8" | 21 | 22 | 19 | 12 | B | 320/CTN | 12 | 13 | |
| 11/16" | 21 | 24 | 20 | 12 | B | 240/CTN | 12 | 13 | |
| 3/4" | 21 | 26 | 23 | 12 | B | 240/CTN | 15 | 16 | |
| 25/32" | 21 | 28 | 25 | 12 | B | 160/CTN | 11 | 12 | |
| 13/16" | 21 | 28 | 25 | 12 | B | 160/CTN | 11 | 12 | |
| 7/8" | 21 | 30 | 26 | 12 | B | 160/CTN | 13 | 14 |
