Metric Low Profile Socket
Product Details

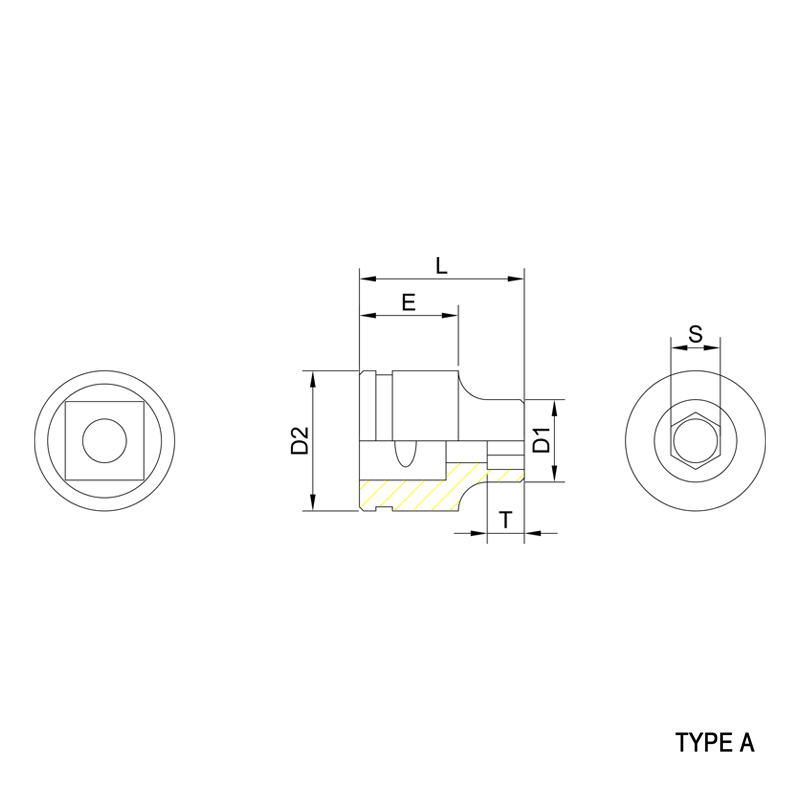

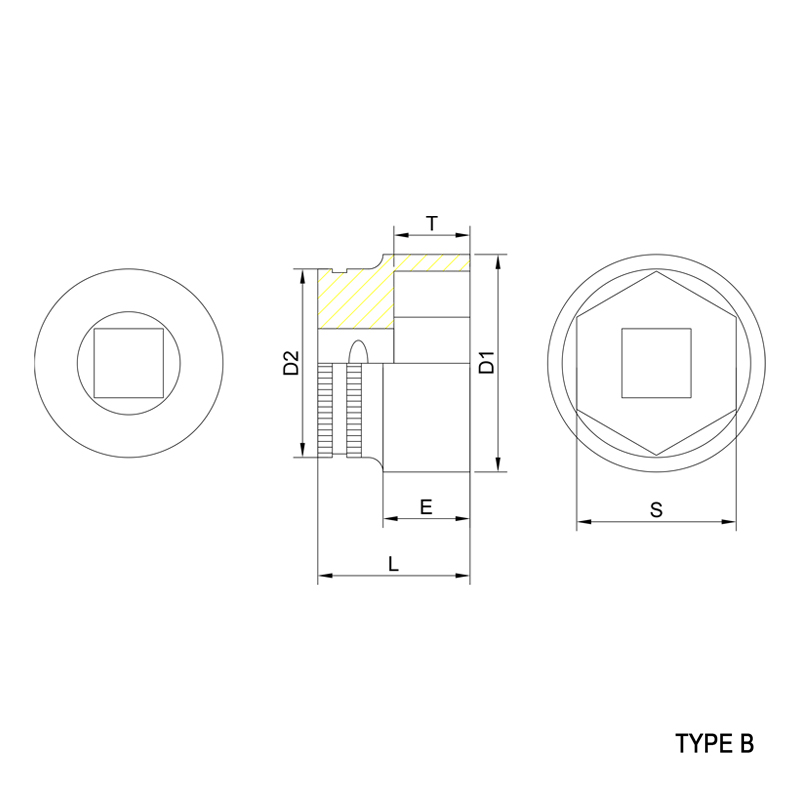

| Item No. | SIZE | L(mm) | D1(mm) | D2(mm) | Emin | TYPE |  PACKING |
N.W.(kg) | G.W.(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 6mm | 21 | 10 | 17 | 12 | A | 400/CTN | 9 | 10 | |
| 7mm | 21 | 11 | 17 | 12 | A | 400/CTN | 9 | 10 | |
| 8mm | 21 | 12 | 17 | 12 | A | 400/CTN | 9 | 10 | |
| 9mm | 21 | 13.5 | 17 | 12 | A | 400/CTN | 10 | 11 | |
| 10mm | 21 | 14.5 | 17 | 12 | A | 400/CTN | 10 | 11 | |
| 11mm | 21 | 16 | 17 | 12 | A | 400/CTN | 10 | 11 | |
| 12mm | 21 | 17 | 16 | 12 | B | 400/CTN | 10 | 11 | |
| 13mm | 21 | 18 | 16.5 | 12 | B | 400/CTN | 11 | 12 | |
| 14mm | 21 | 20 | 17 | 12 | B | 400/CTN | 14 | 15 | |
| 15mm | 21 | 22 | 19 | 12 | B | 320/CTN | 13 | 14 | |
| 16mm | 21 | 22 | 19 | 12 | B | 320/CTN | 12 | 13 | |
| 17mm | 21 | 24 | 20 | 12 | B | 320/CTN | 12 | 13 | |
| 18mm | 21 | 26 | 23 | 12 | B | 320/CTN | 15 | 16 | |
| 19mm | 21 | 26 | 23 | 12 | B | 320/CTN | 15 | 16 | |
| 20mm | 21 | 28 | 25 | 12 | B | 320/CTN | 13 | 14 | |
| 21mm | 21 | 28 | 25 | 12 | B | 320/CTN | 11 | 12 | |
| 22mm | 21 | 30 | 26 | 12 | B | 320/CTN | 13 | 14 |
