Metric Low Profile Socket
Product Details

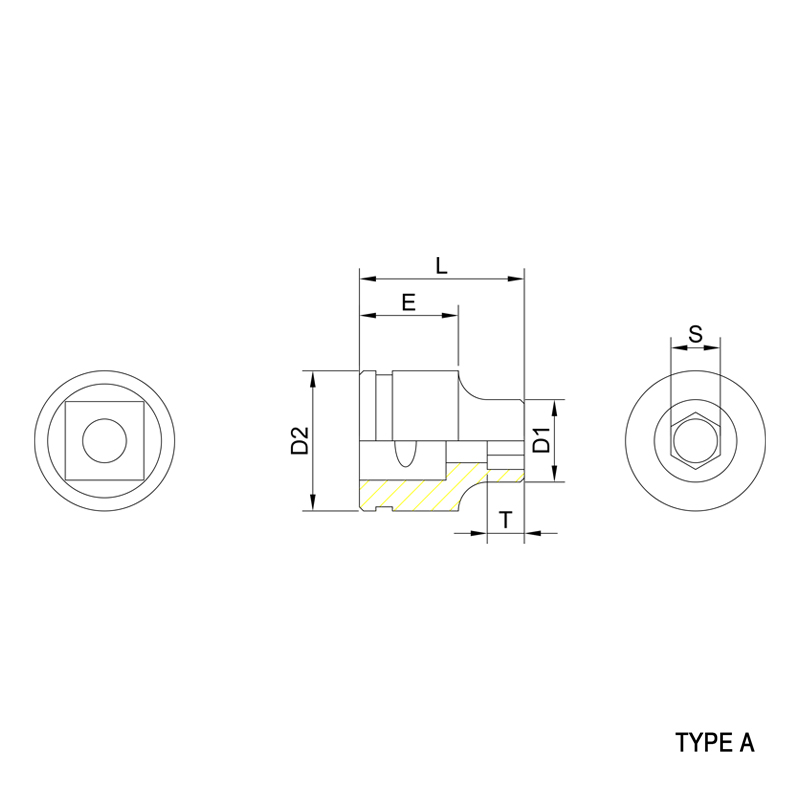

| Item No. | SIZE | L(mm) | D1(mm) | D2(mm) | Emin | TYPE |  PACKING |
N.W.(kg) | G.W.(kg) |
|---|---|---|---|---|---|---|---|---|---|
| 4mm | 15 | 6.8 | 12 | 3 | A | 960/CTN | 9 | 10 | |
| 4.5mm | 15 | 7.4 | 12 | 3 | A | 960/CTN | 9 | 10 | |
| 5mm | 15 | 8 | 12 | 3 | A | 960/CTN | 10 | 11 | |
| 5.5mm | 15 | 8.7 | 12 | 3.5 | A | 960/CTN | 10 | 11 | |
| 6mm | 15 | 9.3 | 12 | 3.5 | A | 960/CTN | 10 | 11 | |
| 7mm | 15 | 10.6 | 12 | 3.5 | A | 960/CTN | 11 | 12 | |
| 8mm | 15 | 12 | 11 | 4.5 | B | 960/CTN | 11 | 12 | |
| 9mm | 15 | 13 | 11.5 | 7 | B | 640/CTN | 9 | 10 | |
| 10mm | 15 | 14 | 12 | 7 | B | 640/CTN | 9 | 10 | |
| 11mm | 15 | 16 | 13.8 | 7 | B | 640/CTN | 13 | 14 | |
| 12mm | 15 | 17 | 14.8 | 7 | B | 640/CTN | 13 | 14 | |
| 13mm | 15 | 18 | 15.8 | 7 | B | 400/CTN | 12 | 13 | |
| 14mm | 15 | 20 | 17.5 | 7 | B | 400/CTN | 12 | 13 |
